Front headlights: replacing the bulbs
Main beam headlight 1
Remove the cover A.
Unclip the connector 2, remove the assembly from its housing and take out the bulb.
Bulb type: H7.
Before replacing the bulb, make a careful note of its position in its housing. After changing it, check that the replacement bulb is in exactly the same position in the housing. Clip the cover in place.
Dipped beam headlight 3 ( LED )
Consult an approved Dealer.
Daytime running light/side light 4 ( LED )
Consult an approved Dealer.
Direction indicator light 5 ( LED )
Consult an approved Dealer.
warning
Please note when working close to the engine that it may be hot. The engine cooling fan may also start at any moment. The
label in the engine compartment reminds you of this.
Risk of injury.

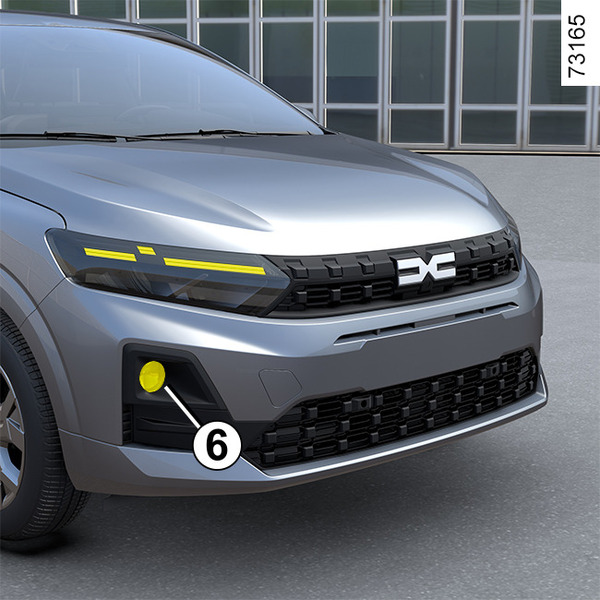

Front fog lights 6
Because of their reduced accessibility, we advise you to have your bulbs replaced by an approved Dealer.
- Access the bulb holder by unclipping the flap 7;
- turn the bulb holder by a quarter of a turn;
- remove the bulb.
Bulb type: H16LL.
Additional lights
If you wish to fit fog lights to your vehicle, please consult an authorised dealer.
Rear and side lights
Side lights/brake lights, direction indicator lights and reversing lights
Loosen the bolt 1, then remove the rear light unit from outside the vehicle.
warning
The bulbs are under pressure and may break when replaced.
Risk of injury.
Pull the tabs 2 to unclip the bulb holder.
To refit, proceed in the reverse order, taking care not to damage the wiring.
Check the tabs are correctly locked in position.
tip
To comply with current legislation, or as a precaution, you can obtain an emergency kit containing a set of spare bulbs and fuses from your approved Dealer.
- 3.
Side light
Bulb type 3: W5W.
- 4.
Side light/brake light
Bulb type 4: P21/5W.
- 5.
Reversing light
Bulb type 5: P21W.
- 6.
Direction indicator light
Bulb type 6: PY21W.
As the rear bumper needs to be removed, consult an approved Dealer.
Bulb type 7: P21W.
High level brake light 8
The bulb 9 of the high level brake light 8 can be accessed through the luggage compartment.
Bulb type 9: W16W.
Number plate lights 12
Unclip the light 12 by pressing the tab 10 using a flat-blade screwdriver or similar tool.
Unclip the lens 11 and remove the bulb 13.
Bulb type: W5W.
LED number plate lights 13
(depending on the vehicle)
Consult an approved Dealer.
Indicator lights 14
Unclip the direction indicator light 14 using a flat-blade screwdriver or similar tool positioned at A to lever the direction indicator light towards the outside of the vehicle.
Make a quarter of a turn (movement B) on the bulb holder 15 and remove the bulb 16 (movement C).
Bulb type: WY5W.
Replace the bulb and refit the direction indicator light.
