Dacia Duster

Multimedia settings

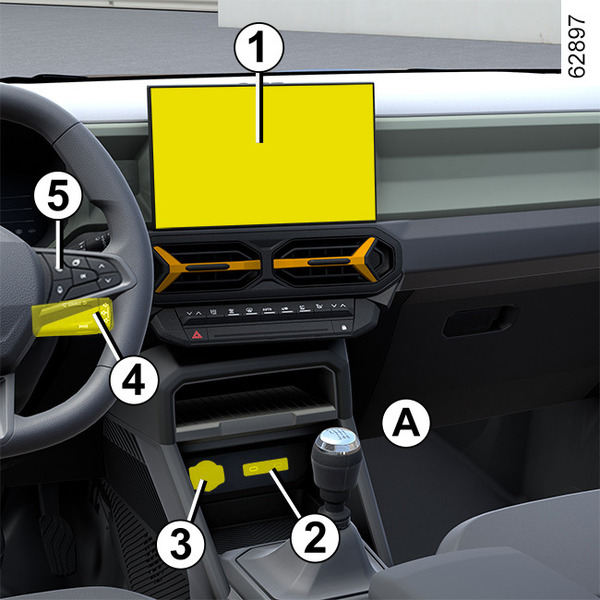

The presence and location of this equipment depends on the vehicle’s multimedia equipment.

1.

Multimedia screen.

2.

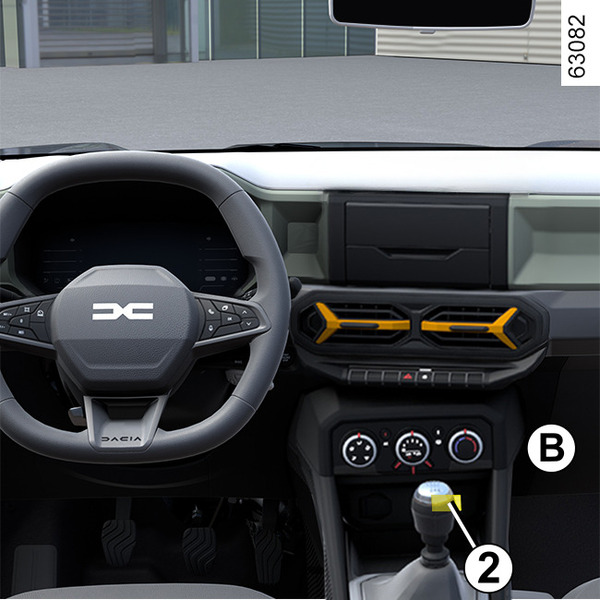

Multimedia sockets USB‑C in the centre console A or B.

3.

Accessories socket Accessories socket.

4.

Steering column control.

5.

Voice command.

6.

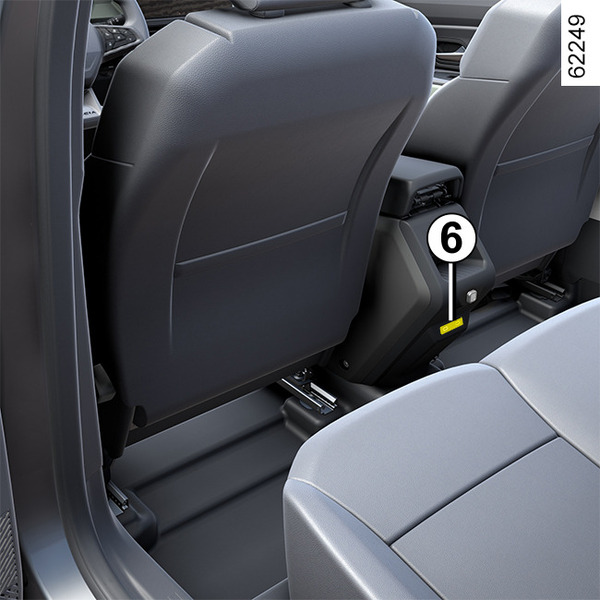

Multimedia sockets USB‑C for the rear passengers.

Multimedia port

The multimedia sockets USB‑C2 and 6 can be used to charge accessories with a maximum power of 12 Watts (5 Volts) per socket.

Note: the multimedia sockets USB‑C2 can also be used the transfer data.

Hands-free telephone integrated control

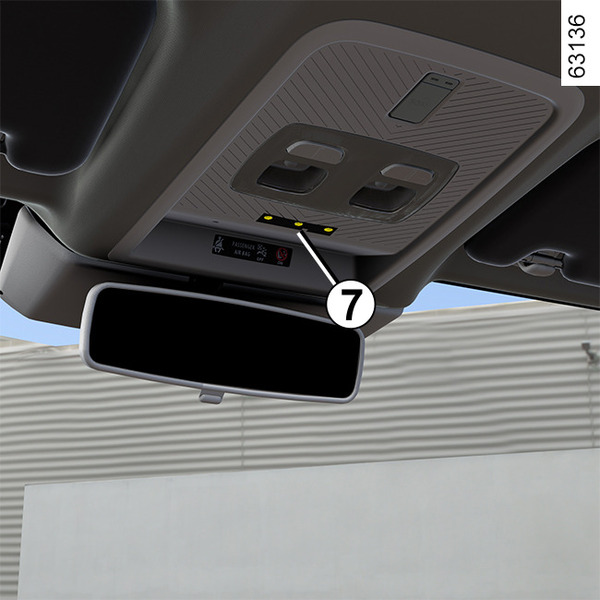

Use the microphone 7 and the steering column control 4.

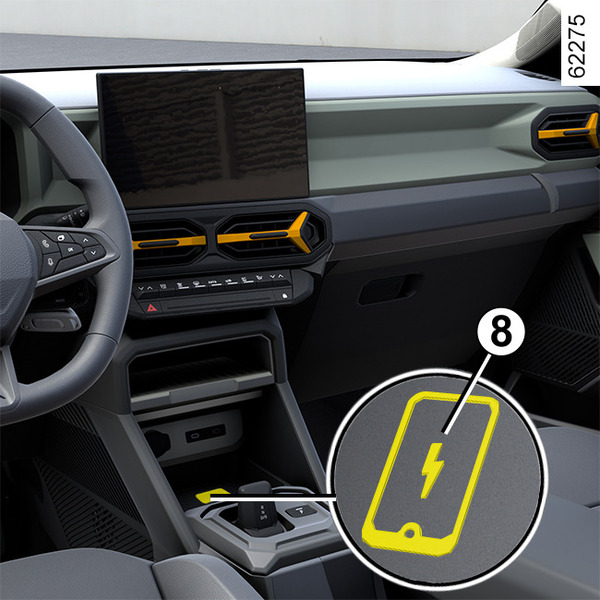

Induction charging area 8

Passenger compartment storage, fittings.

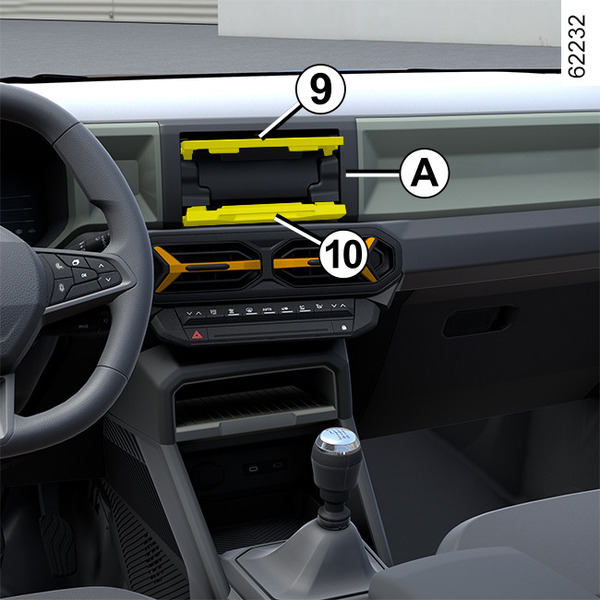

Phone holder A

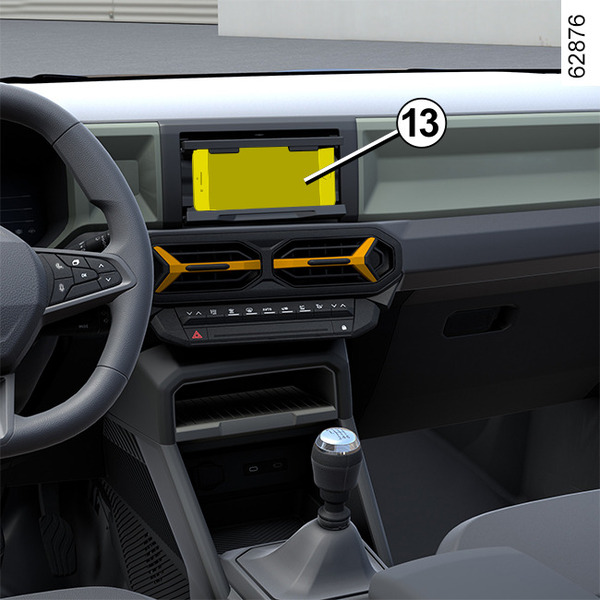

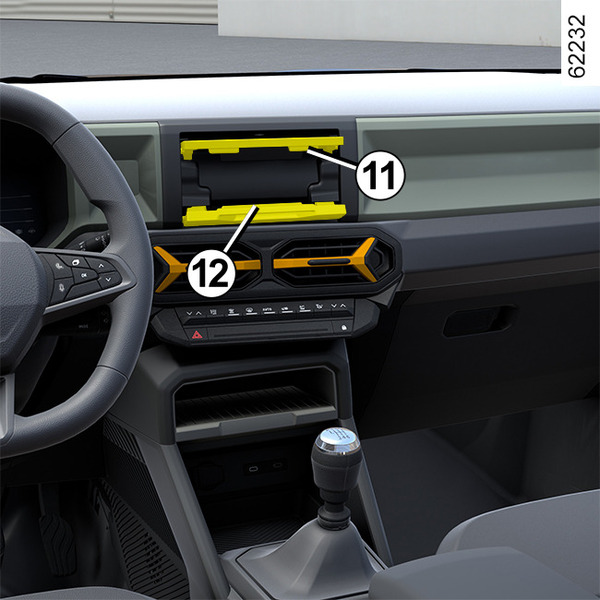

For vehicles equipped with it, open the bottom hatch 10: lift the hatch 9, place your phone 13 in the horizontal position in the slider 12 and then lower the hatch 9 while positioning the phone in the slide 11.

Make sure that the telephone is securely held in place between the 11 and 12 stands before use.

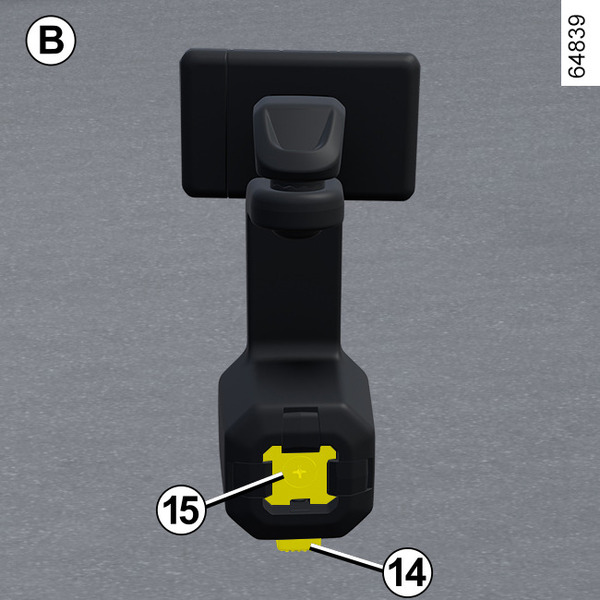

Removable phone holder B

On vehicles that are equipped, to fit the removable telephone holder B, observe the following instructions:

• press button 14 on telephone holder B;

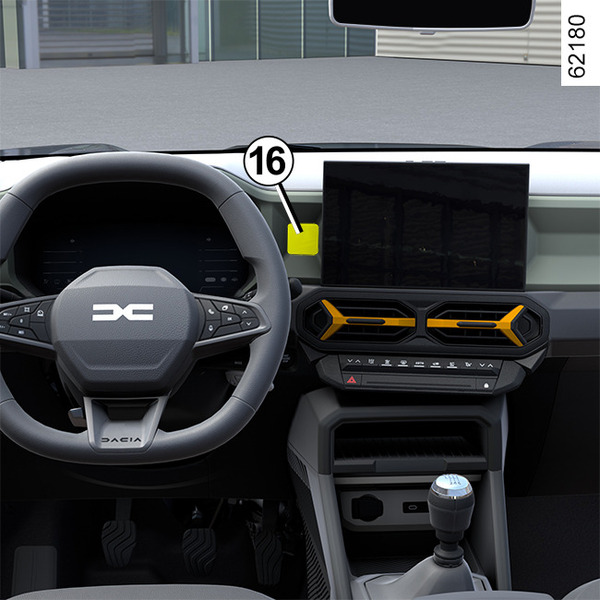

• attach the base 15 of the telephone holder to the multi-accessory holder YouClip16;
• pull the clamp 19 to the right;

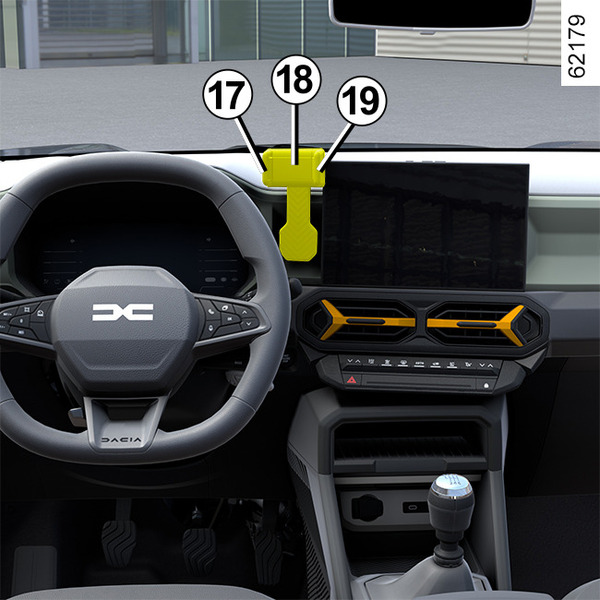

• place your telephone in the telephone holder 18 pressing the fixed clamp 17, then release the clamp 19 so that the telephone is firmly held in place between clamps 17 and 19.

To remove the removable telephone holder B, press button 14.

Note: You can manually adjust the tilt of the telephone holder 18 to the desired position.

Only use the telephone holder approved by the Technical Department.
