Front lights

Changing bulbs

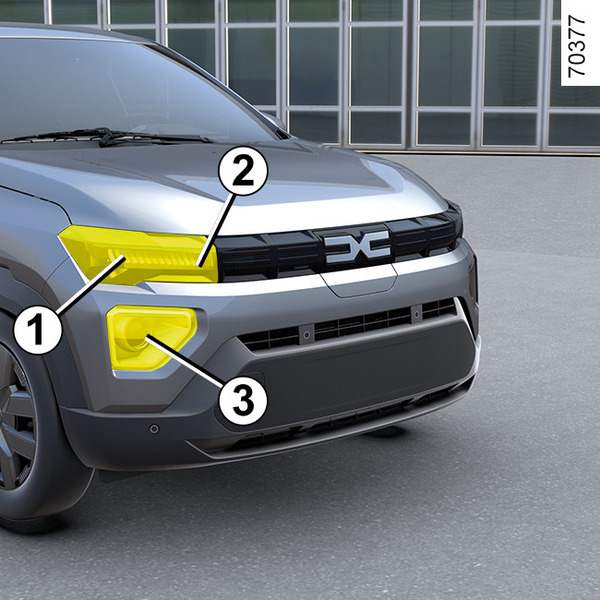

  • LED Direction Indicator light 1

  • LED Daytime running/ Position light 2

  • High beam / low beam 3

Main beam/ Dipped beam headlight

  • Remove cover A.

Bulb Type : HB3

warning

The engine may be hot during operations in close proximity.In addition, the engine cooling fan may come on at any moment.

Risk of injury.

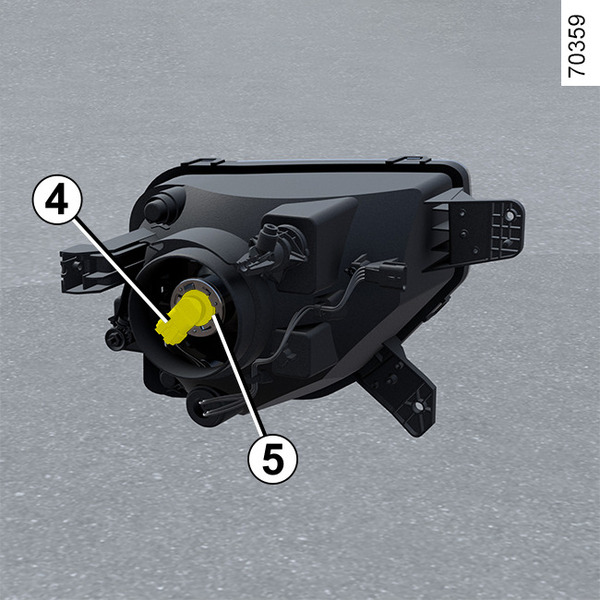

  • Remove bulb connector 4.Unclip spring 5 and take out the bulb.

Do not touch the bulb glass, Hold it by the bass.

  • It is essential to use anti U.V 55W bulbs, so as not to dmange the plastic on the headlights. Mark the bulb’s position before removal to ensure correct positioning when replacing. When the bulb has changed, make sure you refit the cover correctly.

Direction Indicator light LED

Please consult an authorised dealer.

warning

The bulbs are under pressure and can break when replaced.

Risk of injury.

warning

Any operation on (or modification to) the electrical system must be performed by an approved Dealer since an incorrect connection might damage the electrical equipment (harness, components and in particular the alternator). In addition, your dealer has all the parts required for fitting these units.

tip

To comply with local legislation, or as a precaution, you can obtain an emergency kit containing a set of spare bulbs and fuses from an approved dealer.

Rear lights

Changing bulbs

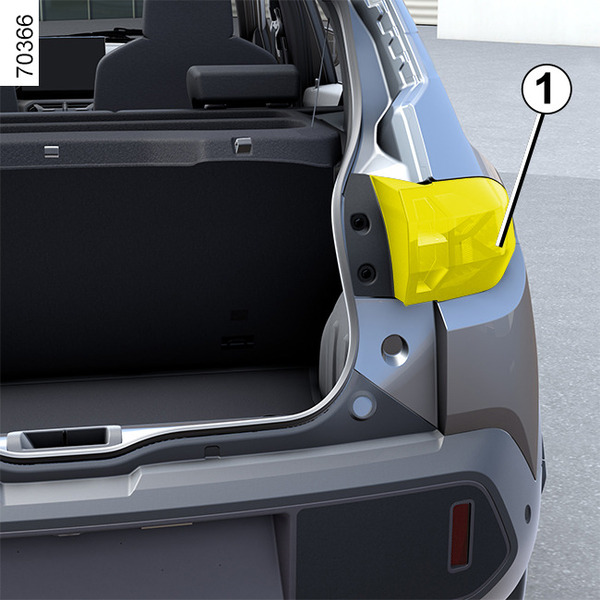

Position/ stop indicator lights LED 1

To disassemble the lamp 1, please consult an authorized dealer.

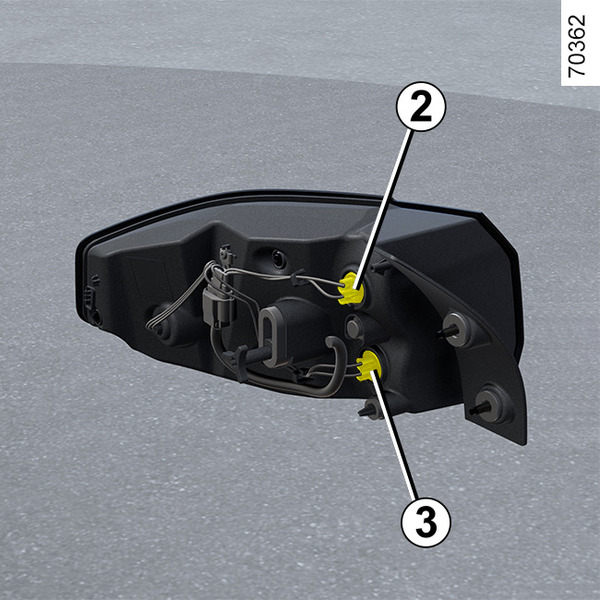

Rear side lights (Direction indicator lights 2/ Reversing lights 3)

Turn bulb holder 2 or 3 and pull it out.

Direction indicator light 2.Bulb type : WY16W.

Reversing light 3 Bulb type : W16W.

warning

Take care when replacing bulbs. Changing their position may result in bulb operating faults.

please consult an authorized dealer.

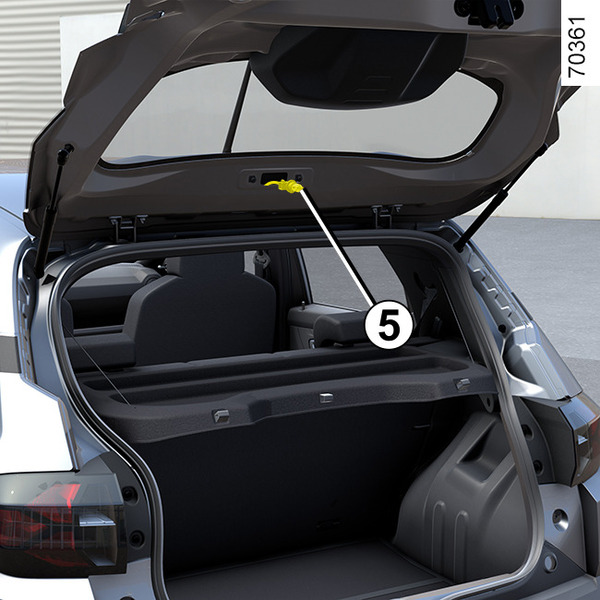

High level brake light 4

The bulb for high-level brake light 4 may be accessed through the boot.

Slide the bulb cover downwards to release it.

Turn the bulb holder 5 a quarter of a turn, release it and remove the bulb.

Bulb type : W16W.

New assembly

To refit, proceed in the reverse order, taking care not to damage the wiring.

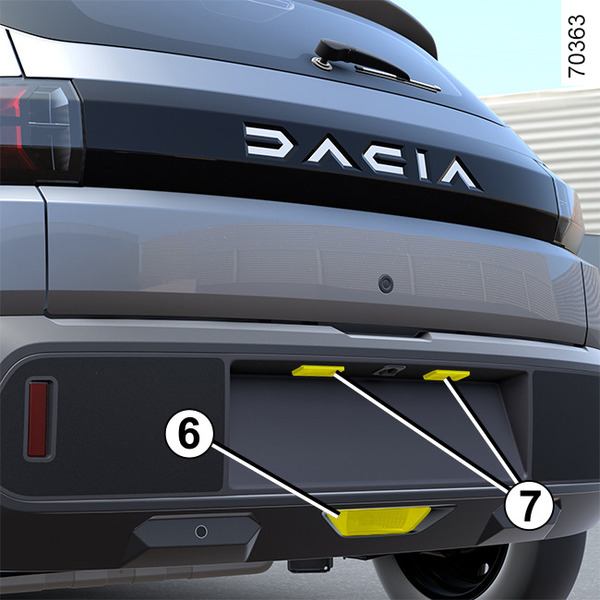

Rear fog light 6

Access the bulb holder located under the rear bumper, then unscrew it by turning towards the centre of the vehicle and remove the bulb.

Bulb type: W21W.

Registration plate light LED 7

Please consult an authorised dealer.
