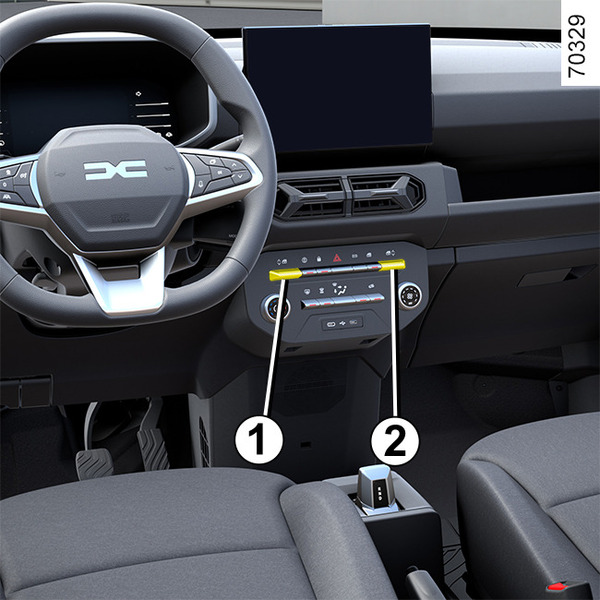

Press the bottom of switch 1 or 2 to open the window or press the top of switch 1 or 2 to close it to the desired level.

1.

for the front driver side ;

2.

for the front passenger side.

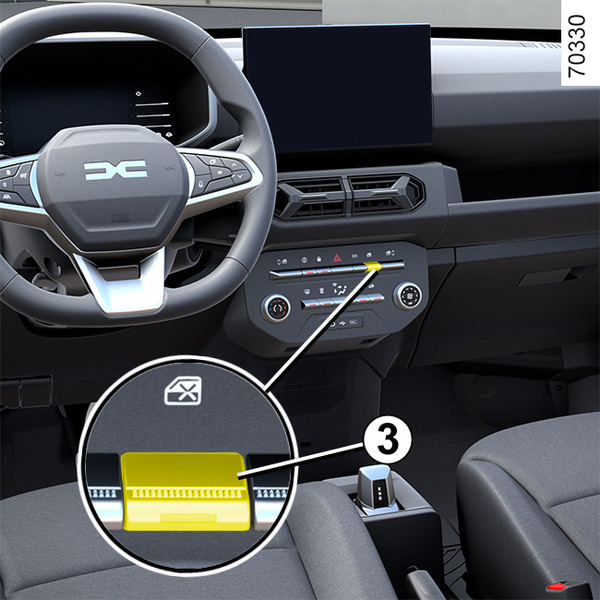

From driver side 3

For driver to prevent operation of rear electric windows

tip

Avoid resting any objects against a half-open window : there is a risk that the electric window could be damaged.

From the rear seats

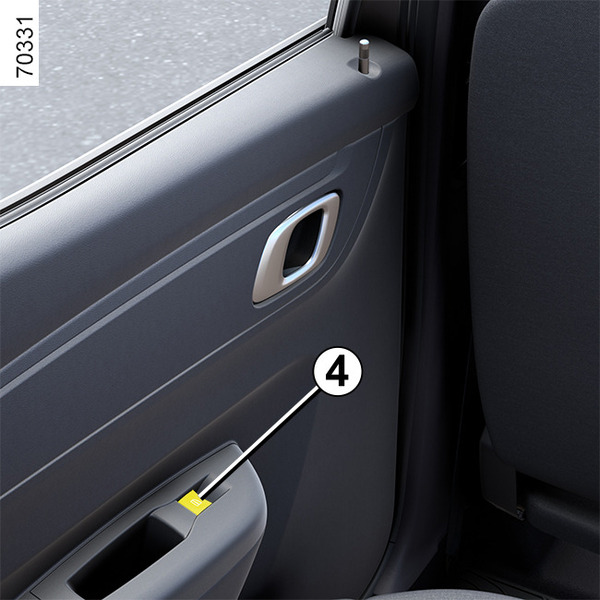

Rear electric windows

Operate switch 4 to raise or lower the rear windows.

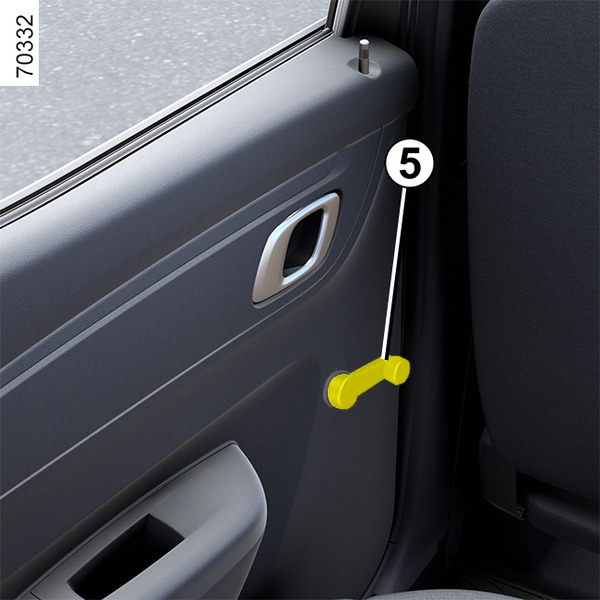

Manually operated rear windows

Turn the handle 5 to lower or raise the window to the desired height.

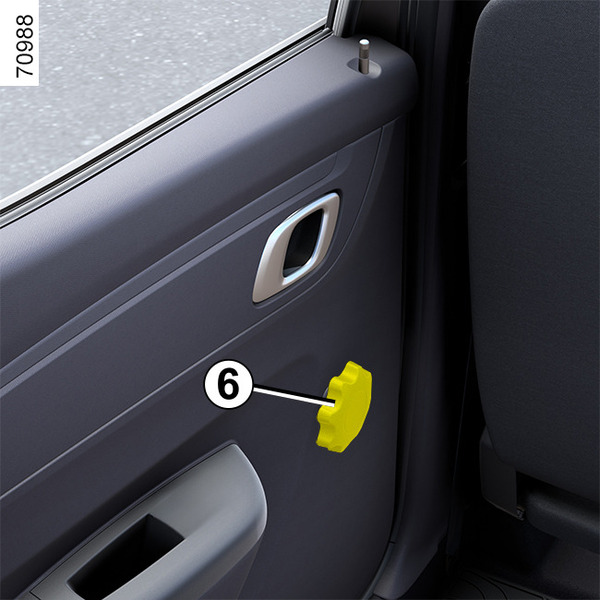

Manually operated rear windows (Utility version)

Depending on the vehicle, turn the rotary control 6 in anti-clockwise direction to lower or in clockwise direction to raise the window to desired height.

NOTE: when closing the window, apply additional force to the door rotary control 6 at the end of the window travel to ensure complete closure.

warning

When closing the windows, ensure that no part of the body (arm, hand, etc.) is protruding from the vehicle.

Risk of serious injury.

warning

Driver’s responsibility

Never leave your vehicle with the key or remote control in it, leaving a child, adult who is not self-sufficient or a pet inside, even for a short while. They may pose a risk to themselves or to others by starting the engine or activating equipment (such as the gear selector or electric windows). If any part of the body becomes trapped, reverse the direction of the window immediately by pressing the relevant switch.

Risk of serious injury.
