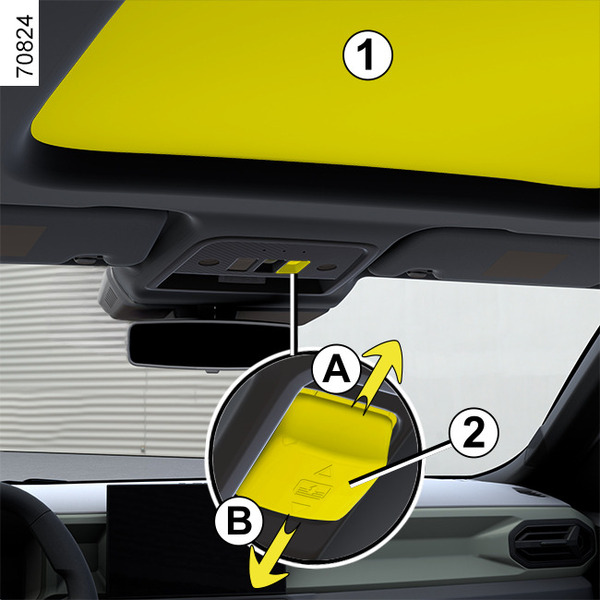

To slide the curtain 1

(depending on the vehicle)

Opening:

  • Press the button 2 backwards (movement A) to open the curtain and hold the button until you reach the desired intermediate position or until it is fully open.

Closing:

  • Press the button 2 forwards (movement B) to close the curtain and hold the button until you reach the desired intermediate position or until it is fully closed.

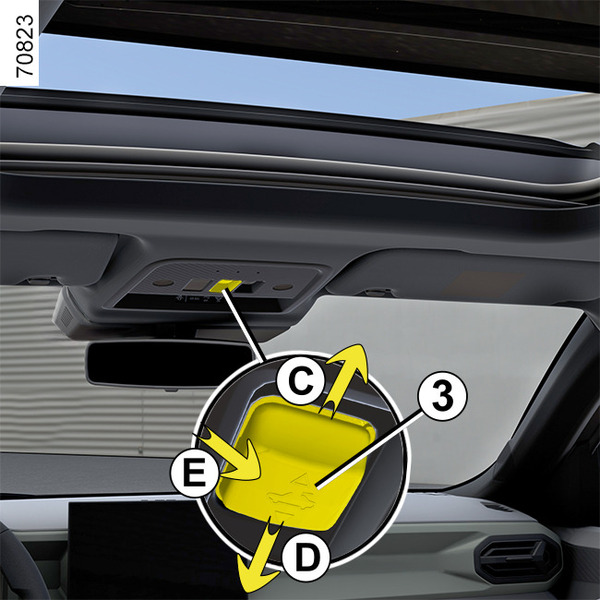

To slide the sunroof

(depending on the vehicle)

Window ajar: press button 3 upwards (movement E) to half-open the window in order to ventilate the passenger compartment.

"Comfort" position:

This is an opening position that provides the best comfort in terms of noise and aerodynamic interference during driving.

To open:

  • Press backwards on button 3 (movement C) to open the window to the "comfort" position.

To close:

  • Press forwards on button 3 (movement D) to close the window completely.

"Intermediate" position:

This is a window opening position that you have previously defined.

To open:

  • Press and hold (for more than two seconds) backwards on the button 3 (movement C), then press forwards (movement D) to stop the window at the desired position.

To close:

  • Press and hold (for more than two seconds) forwards on button 3 (movement D) to close the window completely. If you want to stop the window at another position, press the button backwards (movement C).

"Full" position:

This is to open or close the window completely.

To open:

  • From the "comfort" position, press the button 3 backwards (movement C) to open the window completely.

or

  • In other countries, press and hold (for more than two seconds) the button 3 backwards (movement C) to open the window completely.

To close:

  • From the "comfort" position, press the button 3 forwards (movement D) to close the window completely.

or

  • In other countries, press and hold (for more than two seconds) the button 3 forwards (movement D) to close the window completely.
warning

When closing the sunroof, ensure that no part of the body (arm, hand, etc.) is protruding from the vehicle.

Risk of serious injury.

warning

Driver's responsibility

Never leave an animal, child or adult who is not self-sufficient alone in your vehicle, even for a short time.

The reason for this is that the child may endanger itself or others by starting the engine, activating equipment such as the window winders for example, or locking the doors.

In the event of jamming, immediately reverse the direction of travel by pressing button 3 backwards (movement C) or forwards (movement D).

Risk of serious injury.

Remote-control sunroof closing

If you press and hold the locking button on the card for approximately two seconds, the windows and sunroof will close automatically.

The roof cannot be opened more than the curtain in any situation. If the roof is opened the curtain will also be opened to the same extent.

It is recommended that the user only operates the system when the vehicle can be seen clearly and no one is inside.

Check that the sunroof is closed properly when leaving your vehicle:

Special features

Your vehicle is fitted with an anti-pinch facility: when the sunroof encounters resistance whilst closing (branch of a tree, etc.), it stops and then moves back a few centimetres.

It is not possible to open the sunroof when the exterior temperature is below approximately ˗20°C.

However, it will still close.

User precautions

It is forbidden to use the sunroof when the roof bars are in a transverse position.

Contact an approved Dealer for details on possible conversions:

  • check that the sunroof is closed properly when leaving your vehicle;
  • clean the seal every three months using products selected by our Technical Department;
  • do not open the sunroof immediately after the vehicle has been in the rain or after it has been washed. Risk of damage to the sunroof.

Operating faults

Repeated use of the sunroof over a short period of time may block the operation of the roof for approximately 30 minutes.

If there is a malfunction, consult an approved Dealer.
