Modular roof bars


If the vehicle is equipped, this device enables you to position the roof bars in either the transverse position (carrying position) or the longitudinal position (standard position).

To place the bars in the transverse position:

  • unclip the rotary covers 1 and put them in the vertical position (movement A);
  • loosen the bolts 2 using the torque wrench 6 located in the glovebox;

  • raise bars 3 and 4 and fit them in transverse position 5. To do this, place the bar 3 (movement B) in the front position, then place the bar 4 (movement C) in the rear position.

Note: make sure that bars 3 and 4 are correctly positioned.


tip

Permissible weight on roof bars: Weights (in kg).

warning

It is forbidden to attach any carrying device the roof of vehicles not originally fitted with longitudinal or modular roof bars.

  • use the tool 6 to tighten the bolts 2: markers D and E located on the tool are offset (mark 7);


  • tighten the bolts 2 as far as possible using the tool 6 until markers D and E located on the tool 6 are parallel (mark 8);
  • re-clip the rotary covers 1.

Note: bars 3 and 4 are not interchangeable.

warning

It is strictly forbidden to place the roof bars in the transverse position (carrying position) when entering a roller-type car wash.

warning

Make sure that the two modular roof bars are correctly position and locked.

warning

Roof bars in the transverse position

  • The maximum speed must be limited to 80 mph (130 km/h).
  • During the journey, check the installation and tighten the bolts every 300 miles (500 km) or so.
tip

When not using the bars in transverse position, refit the bars in longitudinal position in order to optimise fuel consumption and avoid air noise.

tip

If lost, contact an approved dealer to obtain the bolts 2 and the tool 6.

warning

The modular roof bars are originally assembled and approved by our Technical Department.

They are provided together with the bolts 2 and the tool 6. These must only be used for attaching the roof bars to the vehicle.

Regularly check the condition of the modular roof bars (correct positioning of the bars, mounting points, bolts, etc.).

Do not use them if they are damaged. Contact an approved Dealer.

warning

Check that the objects and/or accessories (bike rack, roof box etc.) fitted to the modular roof bars are correctly positioned, evenly distributed and secured.

Longitudinal roof bars


If fitted on the vehicle, you can transport luggage or additional equipment (bicycle rack, ski rack, etc):

  • on transverse roof bars, which must in turn be attached to the longitudinal roof bars 9;
  • directly onto the longitudinal roof bars.
tip

For information on the range of equipment adapted to your vehicle, we advise you to consult an approved dealer. Refer to the manufacturer’s instructions for information on how to fit and operate the equipment.

Please keep these instructions with the rest of the vehicle documentation.

Permissible weight on roof bars:Weights (in kg).

warning

It is forbidden to attach any carrying device the roof of vehicles not originally fitted with longitudinal or modular roof bars.

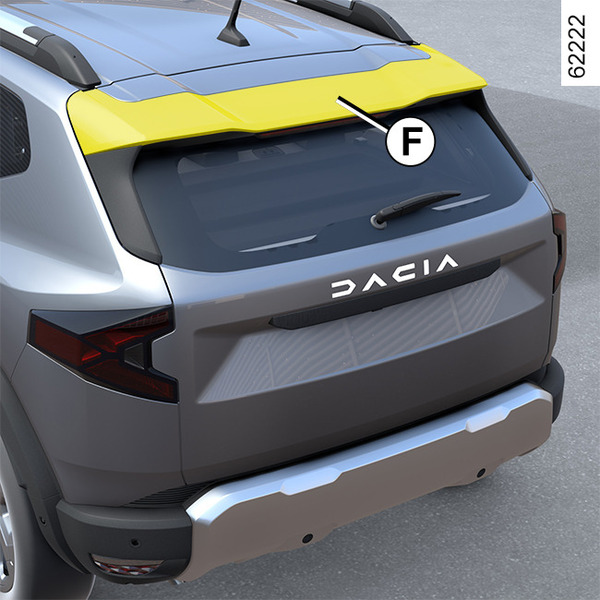

Spoiler F


warning

It is prohibited to attach any carrying equipment (bike rack, luggage box etc.) resting against the spoiler or tailgate. To install a carrying device on your vehicle, contact an Approved Dealer.
