Headlights: vehicles with halogen headlights
(depending on the vehicle)
The bulbs detailed below can be replaced. However, we recommend that these be replaced by an Approved Dealer if this proves difficult.
Dipped beam headlights 1
Remove the cover A.
Unclip the connector 5, remove the assembly from its housing and take out the bulb.
Bulb type: H7.
After replacing the bulb, please ensure that the lights are adjusted by a professional.
Direction indicator lights 2
Turn the bulb holder 4 a quarter of a turn to access the bulb.
Bulb type: PY21W.
warning
The bulbs are under pressure and may break when replaced.
Risk of injury.
Daytime running lights/side lights, main beam headlights 3
Remove the cover B.
Unclip the connector 6, remove the assembly from its housing and take out the bulb.
Bulb type: H15.
Do not touch the bulb glass. Hold it by its base.
It is essential to use anti-U.V.55/15W bulbs so as not to damage the plastic on the headlights.
Mark the bulb’s position before removal to ensure correct positioning when replacing.
When the bulb has been changed, make sure you refit the cover correctly.
warning
Please note when working close to the engine that it may be hot. The engine cooling fan may also start at any moment. The
label in the engine compartment reminds you of this.
Risk of injury.
tip
To comply with current legislation, or as a precaution, you can obtain an emergency kit from your approved dealer containing a set of spare bulbs and fuses.
warning
Any operation on (or modification to) the electrical system must be performed by an approved Dealer since an incorrect connection might damage the electrical equipment (harness, components and in particular the alternator). In addition, your Dealer has all the parts required for fitting these units.
Headlights: vehicles with LED and halogen headlights
(depending on the vehicle)
The bulbs detailed below can be replaced. However, we recommend that these be replaced by an Approved Dealer if this proves difficult.
Direction indicator lights 7
Turn the bulb holder 9 a quarter of a turn to access the bulb.
Bulb type: PY21W.
Main beam headlights 8
Remove the cover C.
Unclip the connector 10, remove the assembly from its housing and take out the bulb.
Bulb type: H7.
It is essential to use anti-U.V.55W bulbs so as not to damage the plastic on the headlights.
Do not touch the bulb glass. Hold it by its base.
Mark the bulb’s position before removal to ensure correct positioning when replacing.
When the bulb has been changed, make sure you refit the cover correctly.
LED side lights/daytime running lights 11
Consult an approved Dealer.
LED dipped beam headlights 12
Consult an approved Dealer.
Front fog lights 13
Because of their reduced accessibility, we advise you to have your bulbs replaced by an approved Dealer.
- Access the bulb holder by unclipping the flap 14;
- turn the bulb holder by a quarter of a turn;
- remove the bulb.
Bulb type: H16LL.
Additional lights
If you wish to fit fog lights to your vehicle, please consult an authorised dealer.
Rear and indicator lights
Side lights/brake lights, direction indicator lights and reversing lights

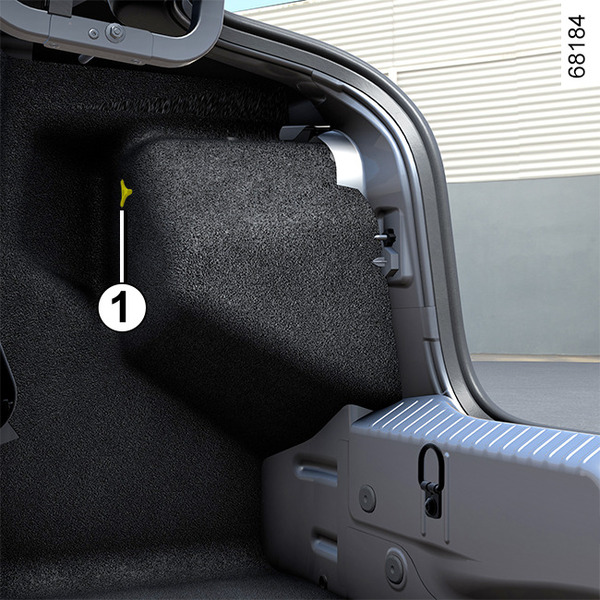

Loosen the bolt 1, then remove the rear light unit from outside the vehicle.
warning
The bulbs are under pressure and may break when replaced.
Risk of injury.

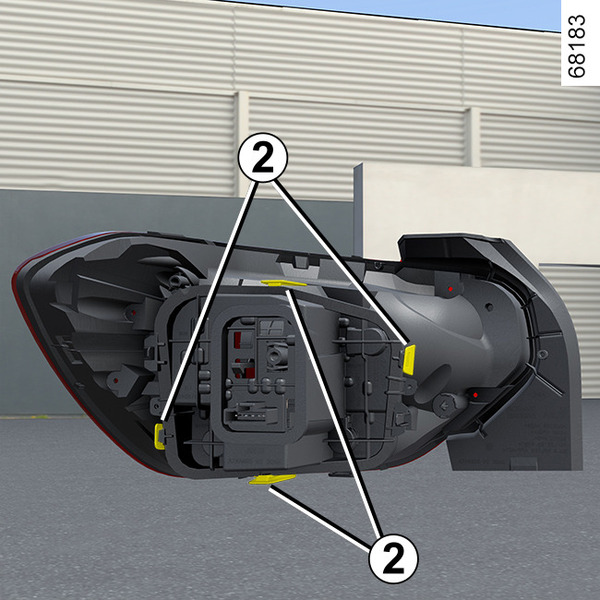

Pull the tabs 2 to unclip the bulb holder.
To refit, proceed in the reverse order, taking care not to damage the wiring.
Check the tabs are correctly locked in position.
tip
To comply with current legislation, or as a precaution, you can obtain an emergency kit from your approved dealer containing a set of spare bulbs and fuses.

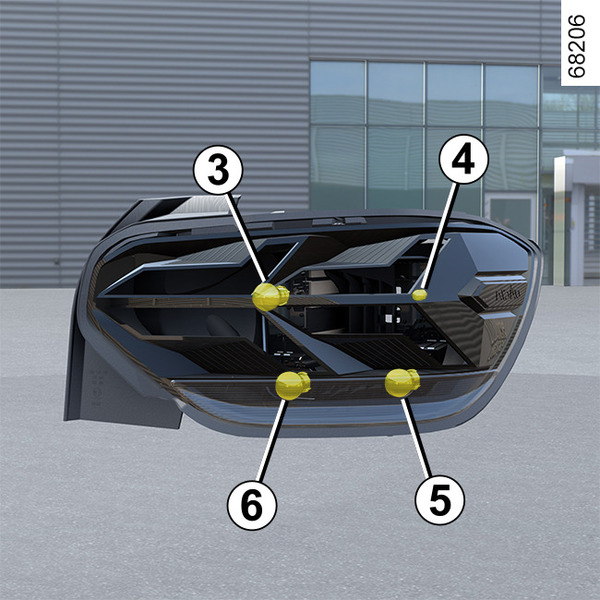

- 3.
Side light
Bulb type 3: W5W.
- 4.
Side light/brake light
Bulb type 4: P21/5W.
- 5.
Reversing light
Bulb type 5: P21W.
- 6.
Indicator light
Bulb type 6: PY21W.

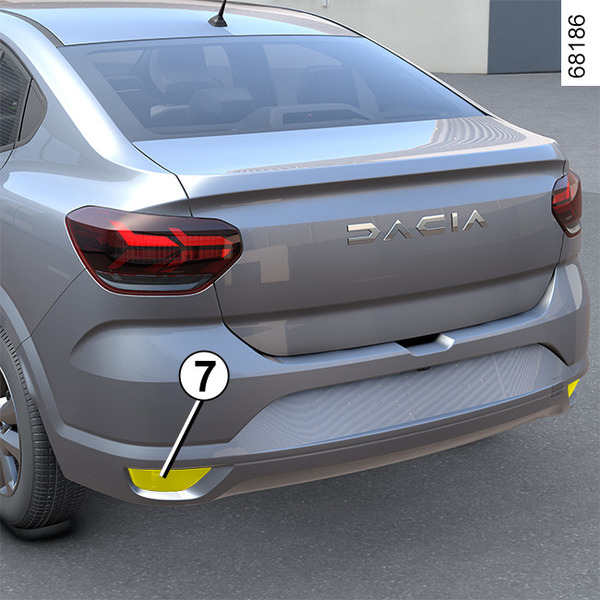

As the rear bumper needs to be removed, consult an Approved Dealer.
Bulb type 7: P21W.
High level brake light 8
The bulb 9 of the high level brake light 8 can be accessed through the luggage compartment.
Bulb type 9: W16W.
Number plate lights 12
Unclip the light 12 by pressing the tab 10 using a flat-blade screwdriver or similar tool.
Unclip the lens 11 and remove the bulb 13.
Bulb type: W5W.
LED number plate lights 13
(depending on the vehicle)
Consult an approved Dealer.
Indicator lights 14

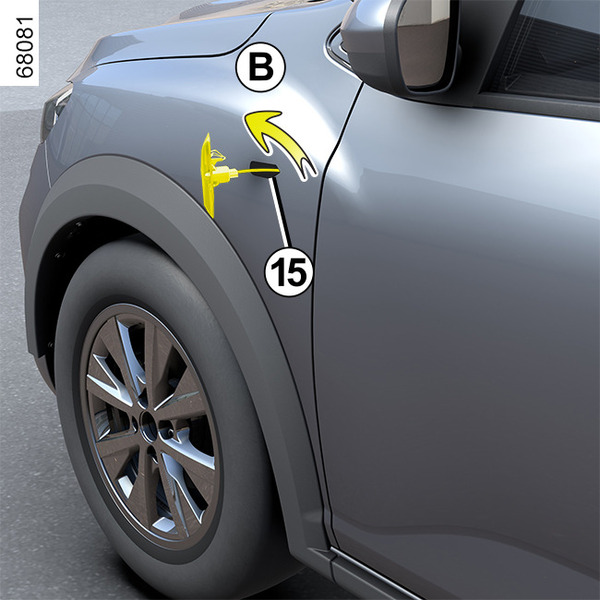

Unclip the direction indicator light 14 using a flat-blade screwdriver or similar tool positioned at A to lever the direction indicator light towards the outside of the vehicle.
Make a quarter of a turn (movement B) on the bulb holder 15 and remove the bulb 16 (movement C).
Bulb type: WY5W.
Replace the bulb and refit the indicator light.
