Operation

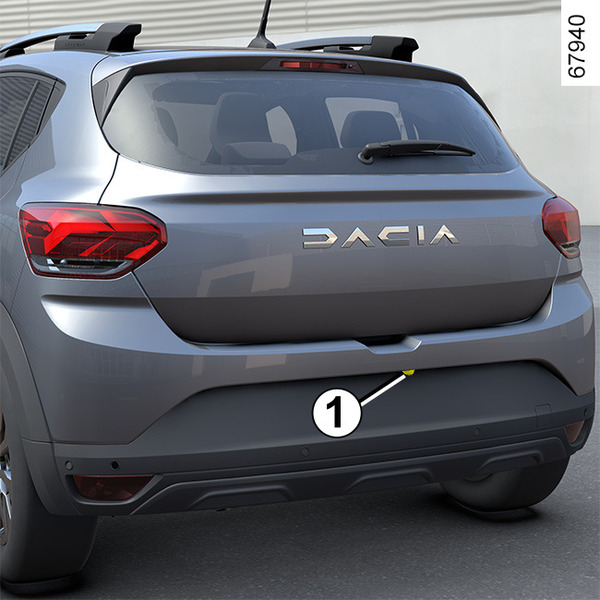

When reverse gear is engaged, the camera 1 located near the number plate lights shows a view of the area behind the vehicle on the multimedia display 2, accompanied by two moving or fixed guide lines 3 and 4.

This system uses several guidelines for its operation (mobile for trajectory and fixed for distance). When the red zone is reached, use the bumper image to stop accurately.


Fixed guide lines 3

The fixed gauge includes coloured markers A, B and C indicating the distance behind the vehicle:

  • A (red) at approximately 30 centimetres from the vehicle;
  • B (yellow) at approximately 70 centimetres from the vehicle;
  • C (green) at approximately 150 centimetres from the vehicle.

This gauge remains fixed and indicates the vehicle trajectory if the wheels are in line with the vehicle.


Moving guide line 4

This is shown in blue on the multimedia screen 2. It indicates the vehicle trajectory according to the position of the steering wheel.

Trailer guide line 5

Special feature

Make sure that the camera is not obscured (by dirt, mud, snow, condensation etc.).

Settings


Vehicle stationary, engine on, from the multimedia screen 2, you can add or remove the guides and adjust the camera image settings (brightness, contrast etc.). Please refer to the multimedia instructions for further information.

Operating faults

When reverse gear is engaged, if the system detects an operating fault, a black screen is displayed temporarily on the multimedia screen 2.

This may be caused by a fault affecting the camera or screen (clearness, fixed image, delayed communication etc.).

If the temporary display of the black screen persists, please consult an approved dealer.

warning

This function is an additional aid. It cannot, therefore, under any circumstances replace the vigilance or the responsibility of the driver.

The driver should always be ready for sudden incidents while driving: always ensure that there are no small, narrow moving obstacles (such as a child, animal, pushchair, bicycle, stone, post, etc.) in the blind spot when manoeuvring.

tip

The screen shows a reverse mirror image.

The frames are a representation projected on a flat surface. This information is to not be taken into account when superimposed on a vertical object or an object on the ground.

Objects which appear on the edge of the screen may be deformed.

In very bright light (snow, vehicle in sunshine, etc.), the camera vision may be adversely affected.

If the luggage compartment is open or incorrectly closed, the "WARNING: Boot Open" message appears on the multimedia screen.

Difference between the estimated distance and actual distance


Reversing towards a steep uphill slope

The fixed guidelines 3 show the distances as closer than they actually are.

The objects shown on the screen are actually further away on the slope.

For example, if the screen displays an object at D, the actual distance of the object is at E.

Reversing towards a steep downhill slope

The fixed guidelines 3 show the distances as further than they actually are.

Therefore, the objects shown on the screen are actually closer on the slope.

For example, if the screen displays an object at G, the actual distance of the object is at F.


Reversing towards a protruding object

Position H seems further than position J on the screen. However, position H is at the same distance as position K.

The trajectory indicated by the fixed and mobile guidelines do not take into account the height of the object. So there is a risk that the vehicle may collide with the object when reversing towards position K.
