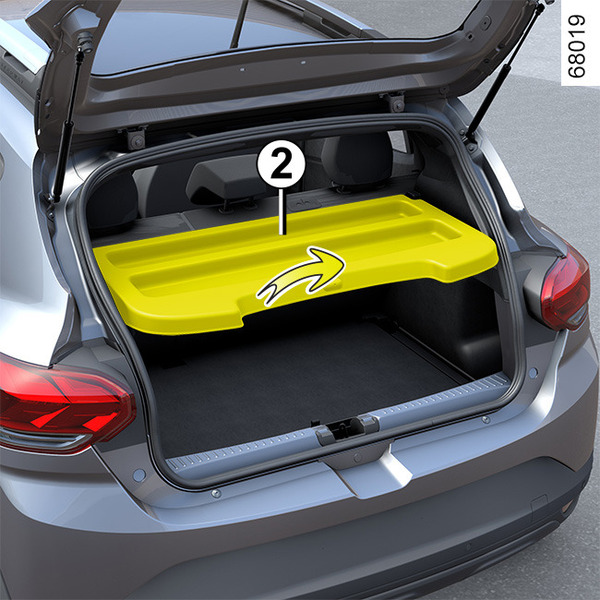

Rear parcel shelf

Removal

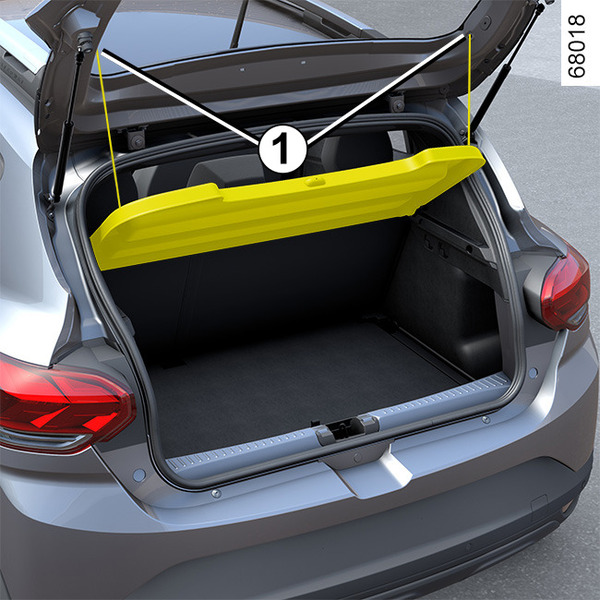

Unhook the two cords 1 (luggage compartment side).

Lift the parcel shelf slightly 2 and pull it towards you.

To refit it, proceed in the reverse order to removal.

warning

Do not place any objects, especially heavy or hard objects, on the parcel shelf 2. These may pose a risk to the vehicle occupants if the driver has to brake suddenly or if the vehicle is involved in an accident.

Transporting objects in the luggage compartment

Always position the objects transported so that the largest surface is against:

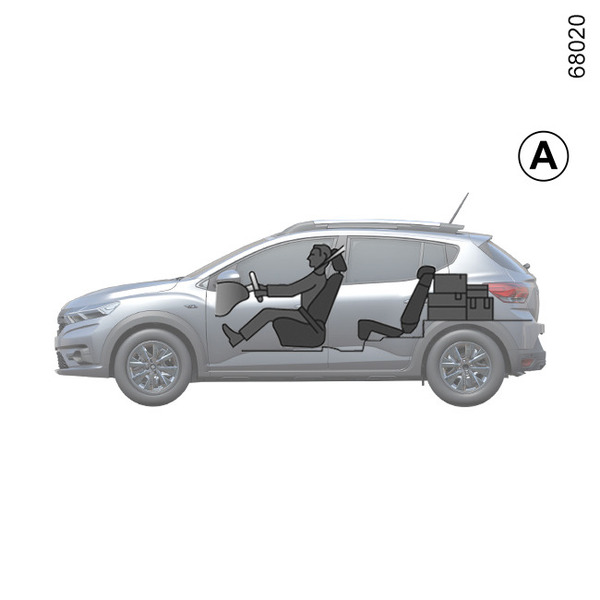

the rear bench seatbacks, for normal loads (example A);

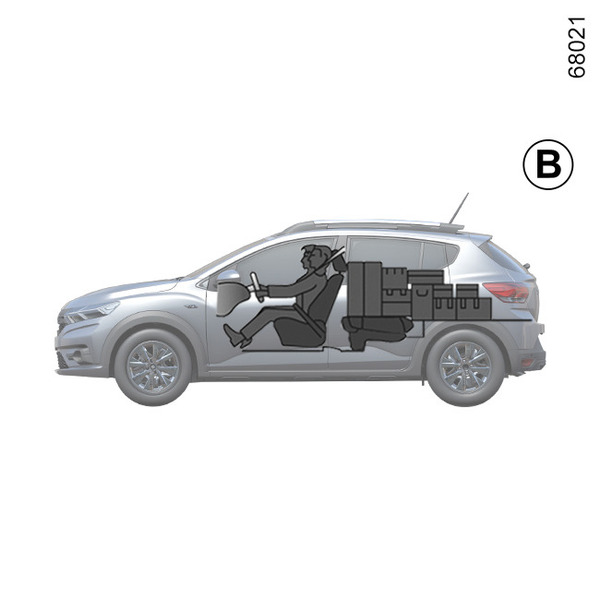

the front seats when the rear seats are folded down Rear seats (example B).

Ensure that the objects being transported are evenly distributed throughout the loading area.

If you have to place objects on the folded seat back, it is vital that you remove the headrests before folding the seat back so that it can be folded as flat as possible against the seat.

warning

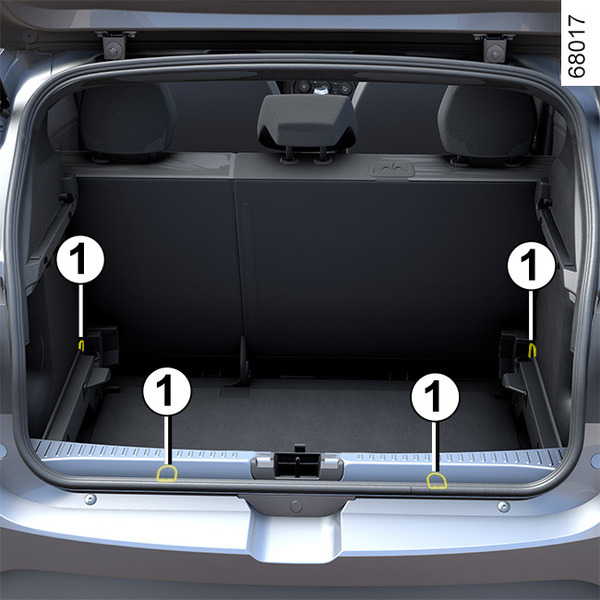

Always position the heaviest items directly on the floor. If the vehicle is equipped, use the lashing points 1 located on the luggage compartment floor. The luggage should be loaded in such a way that no items will be thrown forward and strike the occupants if the driver has to brake suddenly. Fasten the rear seat belts, even if the seats are not occupied.

Luggage compartment storage space and fittings

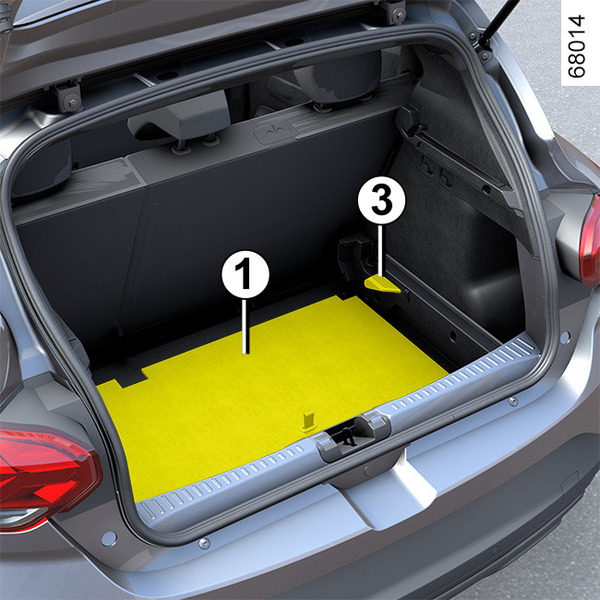

Mobile floor 1

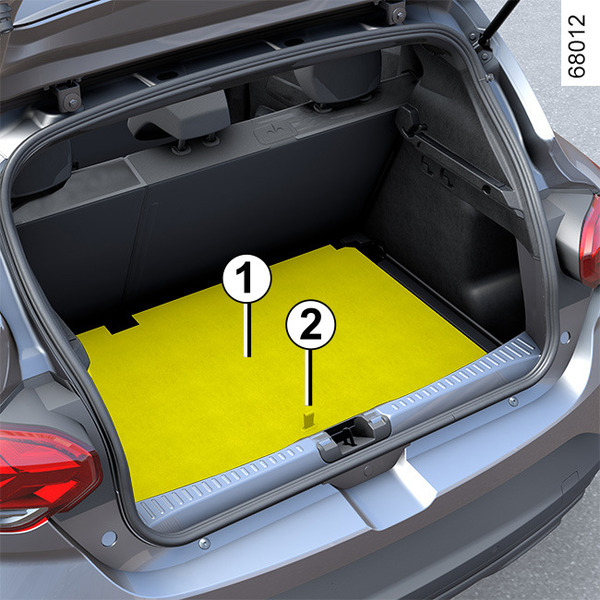

Flat position

Enables you to flatten the floor by folding down the back of the rear bench seat and to compartmentalise the boot into two distinct spaces.

The mobile floor is positioned on the runner 3.

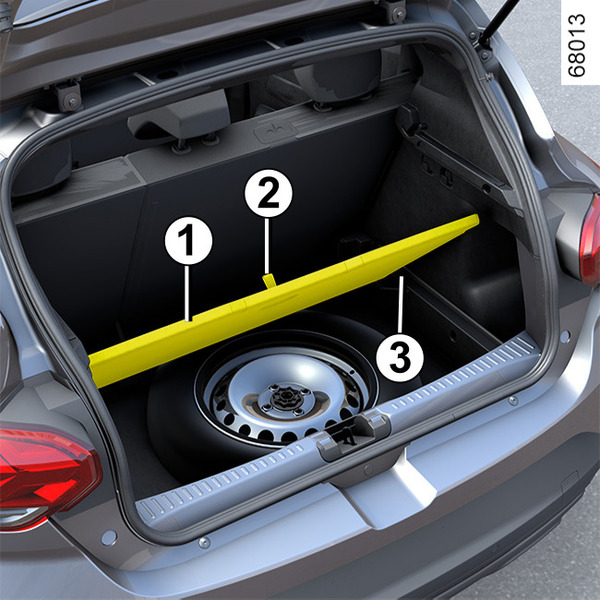

Intermediate position

In locked position, it can be used to access the emergency spare wheel located under the floor.

- Remove the mobile floor 1 using the tab 2;

- place it in the luggage compartment, using the runners provided 3.

tip

Maximum weight for the mobile floor: 100 kg evenly distributed.

Storage position

This allows for more space to store things in the boot.

- Remove the mobile floor 1 using the tab 2;

- place it in the luggage compartment underneath the runner 3.

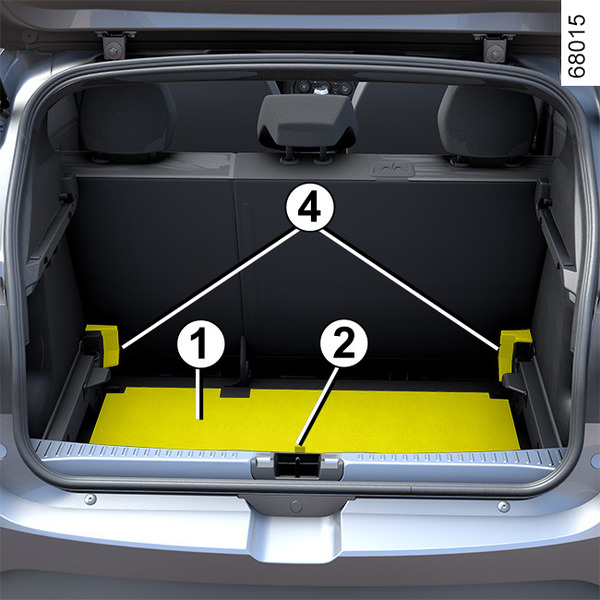

Inclined position

Lift the mobile floor 1 using the tab 2 and place it on the lugs 4.

tip

Maximum weight on the mobile floor in the tilted position: 80 kg with the weight evenly distributed.

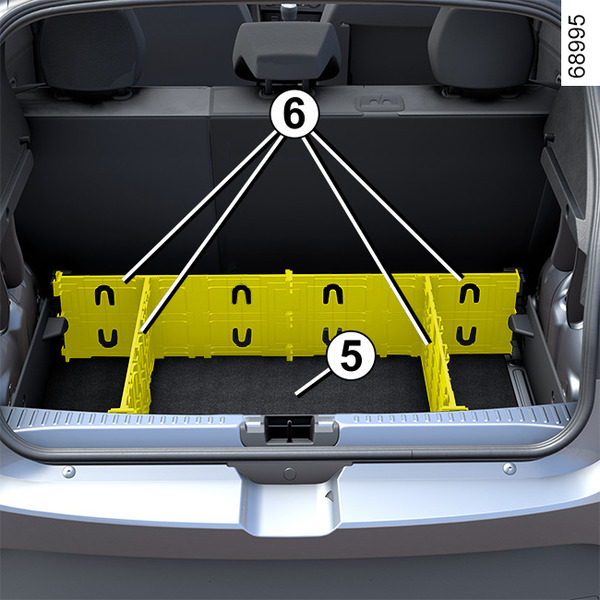

Separating the luggage compartment

(depending on the vehicle)

The luggage compartment can be adapted to provide separate storage areas.

To disassemble and assemble the components 6, please see the equipment instructions.

Please keep these instructions with the rest of the vehicle documentation.

Note:

  • when assembling components 6, ensure that the luggage compartment carpet 5 is positioned correctly;
  • after disassembling, use the storage bag to store the components 6.
tip

Maximum permissible load in the luggage compartment: 16 kg distributed evenly between compartments.

Anchorage points

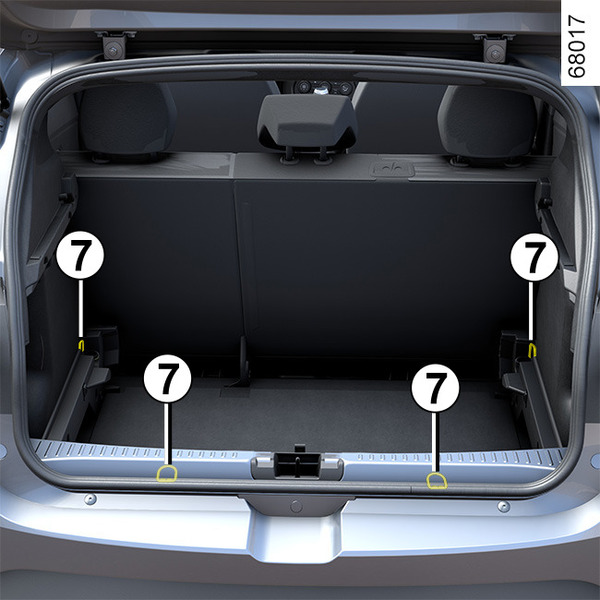

The anchorage points 7 located in the luggage compartment allow loads to be secured.

tip

Always position objects being transported so that the heaviest items are resting against the back of the rear bench seat.

warning

Always position the heaviest items directly on the floor. If the vehicle is equipped with anchorage points on the luggage compartment floor, use them. The luggage should be loaded in such a way that no items will be thrown forward and strike the occupants if the driver has to brake suddenly. Fasten the rear seat belts, even if the seats are not occupied.
