Dacia Spring

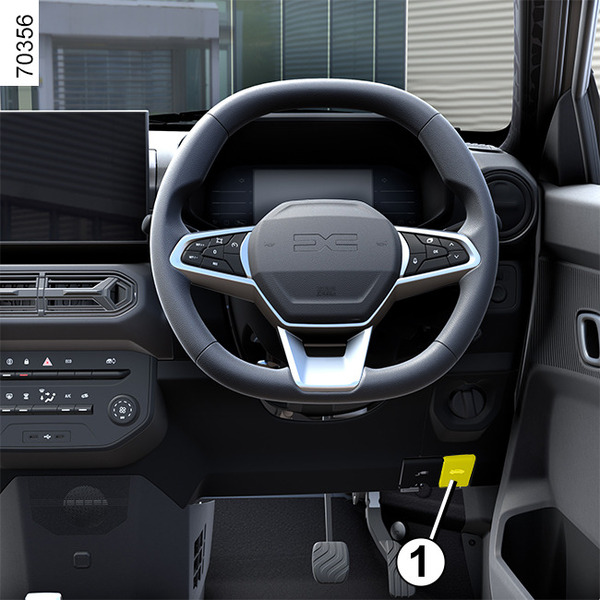

To open the bonnet, pull the knob 1.
(Depending on the vehicle)
Unlocking the bonnet latch

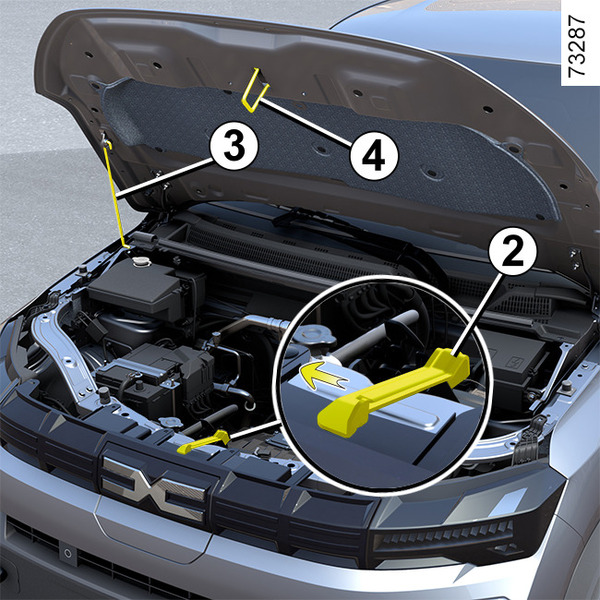

To unlock, gently lift the bonnet and push tab 2 towards left to release the striker 4 .
Opening the bonnet
Lift the bonnet ; remove the Stay rod 3 from lock clip and place into the hole to hold the bonnet open.
Closing the bonnet
To close the bonnet, remove the stay rod 3 from the hole and place to the lock clip. Lower it to 30 cm above the closed position, then release it. It will lock automatically under its own weight.
tip
It is recommended not to lower the bonnet more than 30 cm above its closed position to avoid damage to the headlamps or front face of your vehicle.
warning
Do not open the bonnet when the vehicle is charging or when the ignition is switched on.
warning
Do not press down on the
bonnet : there is a risk that
the bonnet will close inadvertently.
warning
In the event of even a slight impact involving the radiator grille or bonnet, have the bonnet lock checked by an authorised dealer as soon as possible.
warning
After carrying out any work in the engine compartment, check that nothing has been left behind (cloth, tools etc.).
Otherwise, this may lead to engine damage.
warning
The engine may be hot during operations in close proximity. In addition, the engine cooling fan may come on at any moment.
Risk of injury.
warning
When working in the engine compartment, ensure that the windscreen wiper stalk is in the park position.
Risk of injury.
warning
Ensure that the bonnet is properly locked.
Ensure that nothing is preventing locking (grit, cloths, etc.).
warning
The electric vehicle's drive system uses « High voltage » electric current.
This system can get hot during and after switching off the ignition. Respect warning messages given on the labels in the vehicle.
Any intervention or modification on the vehicle's « High voltage » electrical system (components, cables, connectors, traction battery) is strictly prohibited.
Risk of serious injury and/or electric shock which may endanger life.
The engine cooling fan may also start at any moment. The
label in the
engine compartment reminds you of this.
Risk of injury.
