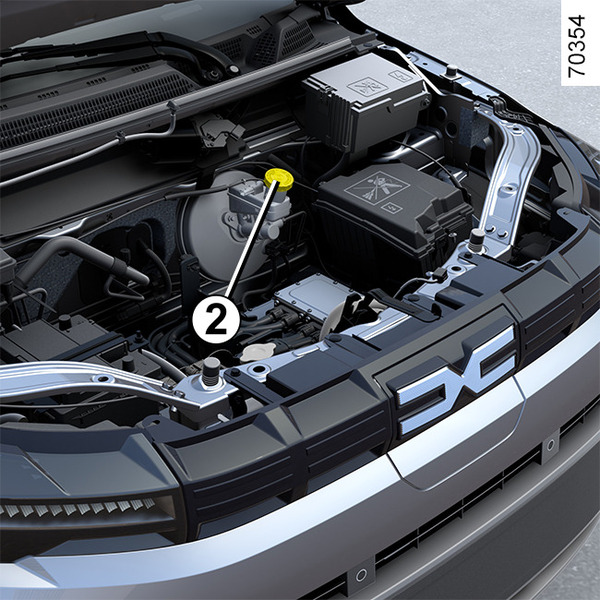

Brake fluid level

The level should be read with the engine switched off and on level ground.

This should be checked frequently, and immediately if you notice even the slightest loss in braking efficiency.

Replacement interval

Refer to the Maintenance Document for your vehicle.

Level 2

It is normal for the level to drop as the brake shoes become worn, but it must never drop lower than the « MINI » warning line.

If you wish to check the disc and drum wear yourself, you should obtain the document explaining the checking procedure from the network or the manufacturer’s web site.

Topping up

After any operation on the hydraulic circuit, a specialist must replace the brake fluid.

Only use fluids approved by our Technical Department (and taken from a sealed container).

tip

If there is an abnormal or repeated drop in the fluid level, please consult an authorised dealer.

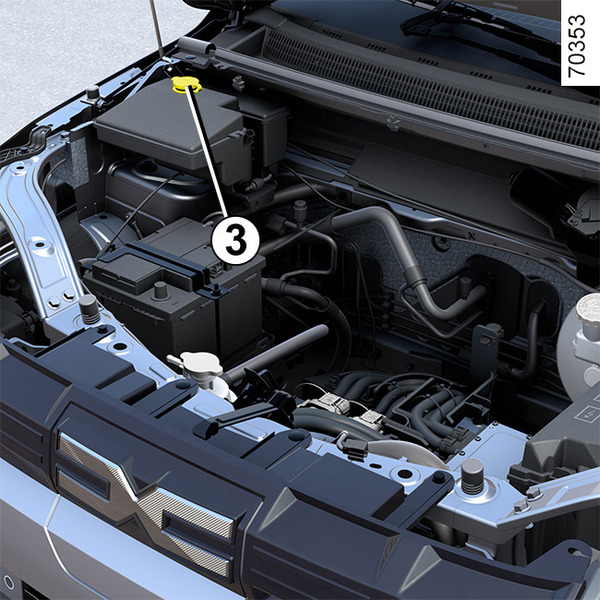

Windscreen washer reservoir

Topping up

Engine switched off :

  • open the cap 3 ;
  • pull the extending funnel upwards as far as it will go ;
  • fill until you can see the fluid ;
  • push the funnel by pressing on it and replace the cap.

Liquid

Only use windscreen washer fluid containing antifreeze.

We advise you to consult an approved dealer or a qualified professional.

Note: do not use hard water (risk of damage to the priming pump or limescale building up on the pump and the jets).

Jets

To adjust the height of the windscreen washer jets, please consult an authorised dealer.

Filters

The filter elements (cabin filter etc.) should be replaced during the maintenance operations carried out on your vehicle.

Replacement intervals for filter elements : refer to the Maintenance Document for your vehicle.

warning

When working in the engine compartment, ensure that the windscreen wiper stalk is in the park position.

Risk of injury.

warning

Before carrying out any action in the engine compartment, you must switch off the ignition.

warning

No operations should be carried out on the cooling circuit when the engine is hot.

Risk of burns.

warning

When working under the bonnet, the bonnet may be hot. The engine cooling fan may also start at any moment.

Risk of injury.
